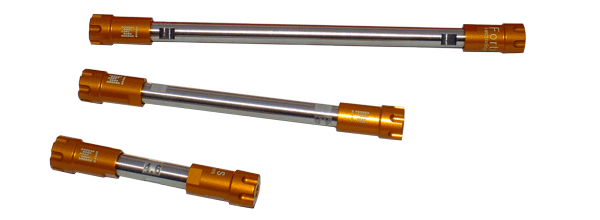

SpeedCore is the very latest in core-shell technology for use in HPLC and UHPLC.  Designed to offer enhanced efficiency, speed and resolution of analysis.

Available in six phase chemistries, ensuring that a diverse range of Hydrophobic, Dipole and Hydrophillic interactions are available in order to gain retention and resolution.  Orthoganol selectivity is now provided by the new C18-PFP and RP18-Amide stationary phases:

 Particle Size S.A. Pore Size % Carbon USP
SpeedCore C18  2.6um or 5um  140 m2/g80 A10 L1
SpeedCore Diphenyl  2.6um or 5um 140 m2/g 80 A  7L11
SpeedCore C18-PFP 2.6um or 5um140 m2/g  80 A -L1
SpeedCore RP18-Amide  2.6um or 5um140 m2/g  80 A  9 L60
 SpeedCore PFP  2.6um or 5um140 m2/g 80 A  6L43
 SpeedCore HILIC  2.6um or 5um 140 m2/g 80 A    N/AL3
 SpeedCore AQUA   2.6um or 5um  140 m2/g 80 A  L1
 SpeedCore C82.6um or 5um  140 m2/g 80 A  L7




NEW  SpeedCore AQUA



  •  C18 with polar endcapping
  •  Polar selectivity
  •  Ultra high efficiency
  •  High resolution, high selectivity


    SpeedCore C18



    •  C18 Hydrophobicity
    •  General HPLC reversed phase use
    •  Ultra high efficiency
    •  Method development starting point

    SpeedCore Diphenyl



    •  Alternative selectivity
    •  Separate positional isomers
    •  Stable ligand, No "MS Bleed"
    •  Enhanced polar retention


     SpeedCore C18-PFP



    •  C18 with PFP (Pentafluorphenyl) ligands
    •  Orthogonal selectivity
    •  Ultra high efficiency
    •  High resolution, high selectivity



    SpeedCore RP18-Amide



    •  C18 with polar embedded functionality
    •  Orthogonal selectivity
    •  Ultra high efficiency
    •  Method development starting point


    SpeedCore PFP



    •  Reversed phase selectivity
    •  Separate metabolites
    •  Excellent resolution
    •  Excellent stability

    SpeedCore HILIC



    •  Hydrophilic interaction mode
    •  Separate polar species
    •  Excellent retention
    •  Excellent stability
          SpeedCore C8



      •  C8 Hydrophobicity
      •  General HPLC reversed phase use
      •  Ultra high efficiency
      •  Method development starting point

    To learn more on how you can best use Fortis SpeedCore HPLC columns contact our technical support or order our SpeedCore guide:
